Automatic production line, speed chain assembly line, air conditioning production line, computer ass

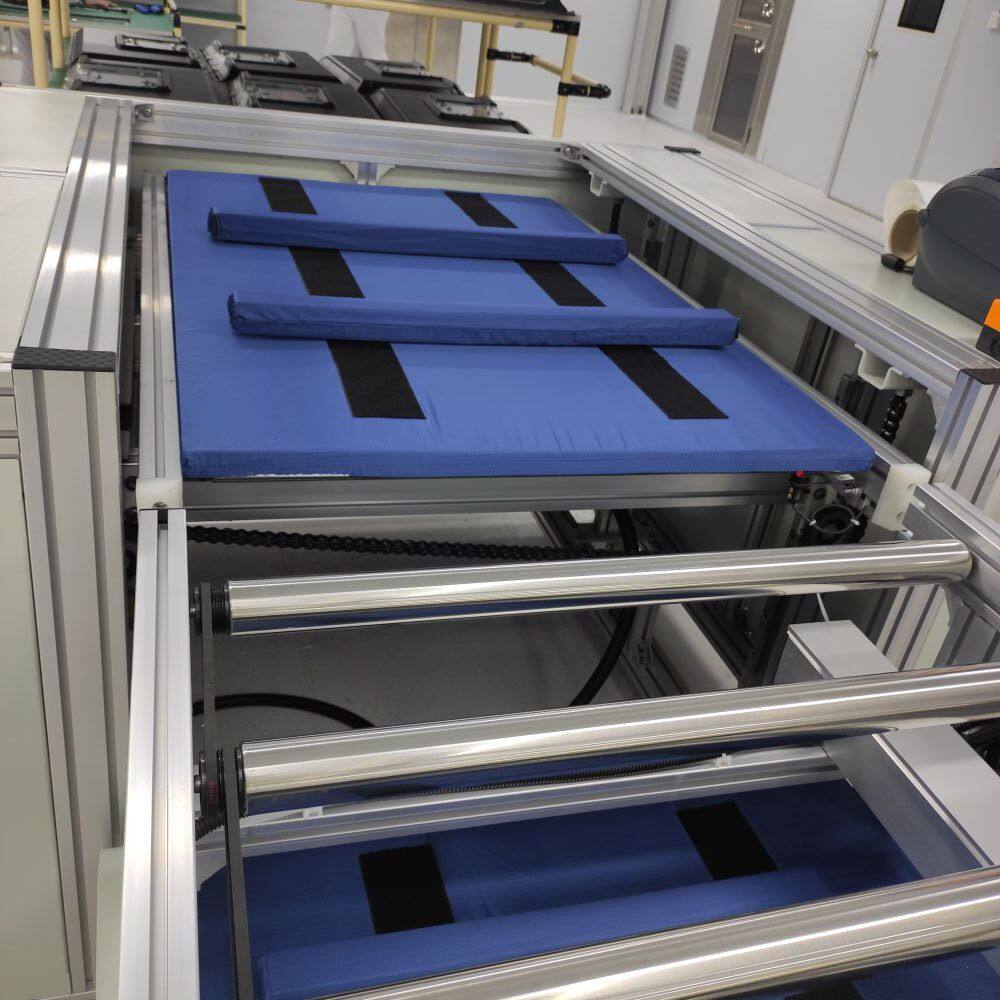

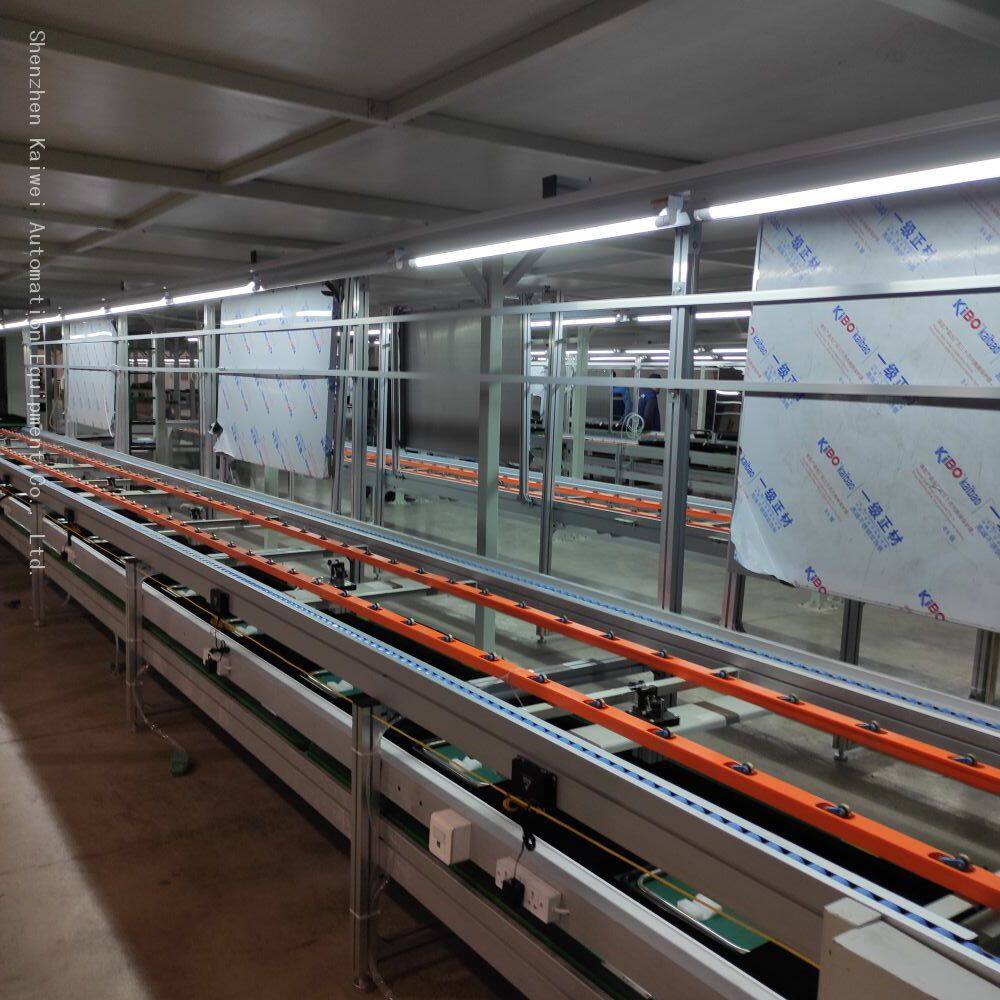

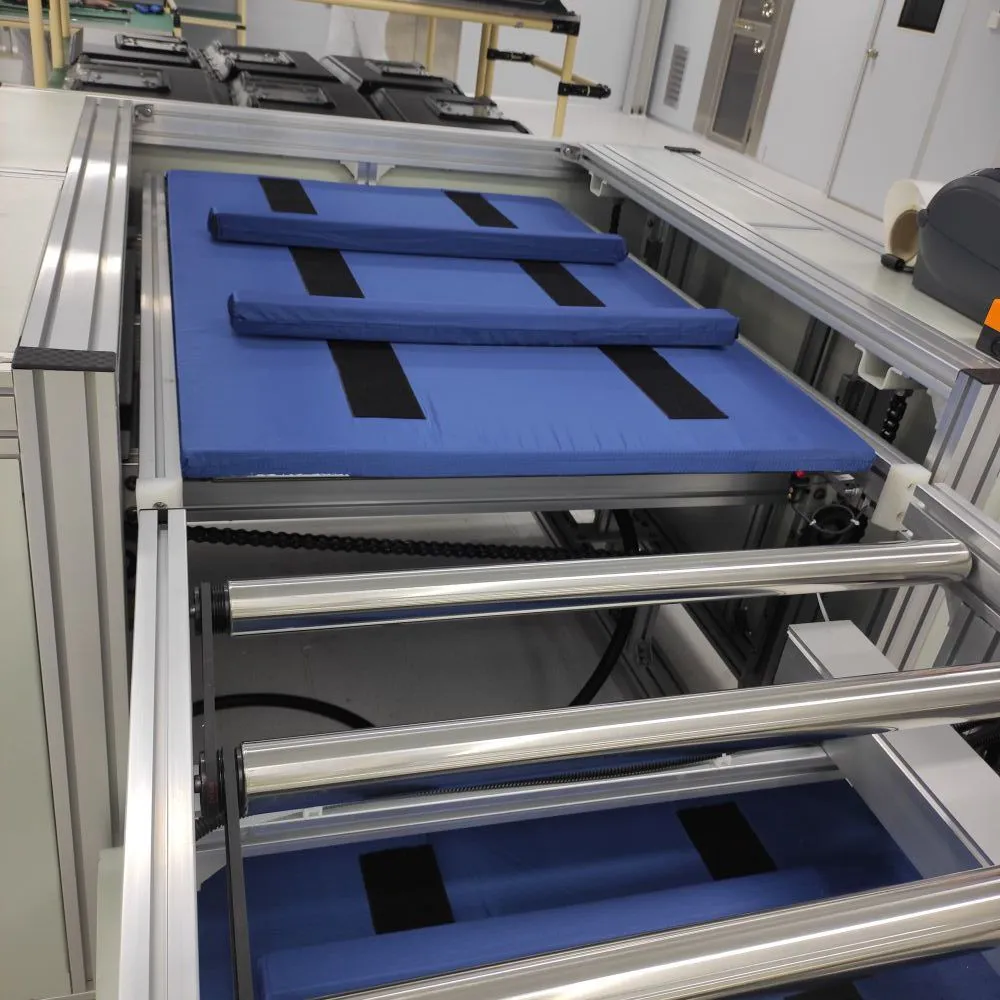

Double Speed chain assembly line
Through the differential transmission between the chain and the machine tool plate, the production line realizes the smooth transportation and station parking of the workpiece, and has the dual advantages of efficient transportation and accurate operation.
Critical structure and working logic
Core components: two-speed chain (equipped with built-in Rollers) , drive unit (motor + reducer) , rack, tool plate, blocker and lifting and transfer mechanism.
Differential Drive: Machine Tool Plate movement speed is 2-3 times the chain (through the precise design of the pitch and roller diameter to determine the ratio) , shorten the idle delivery time. When the production line continues to run, the stopper fixes the tool plate at the designated station for assembly/testing; after completion, the stopper is released to achieve continuous cyclic transportation through the return line.
Auxiliary mechanism: lifting and transferring device to achieve direction switching or line change; precise positioning (± 0.02 mm accuracy) and chain tension to ensure high-precision operation.
Advantages
1. Efficient transportation, continuous loop transmission to reduce the waiting time, suitable for mass production.
2. Flexible Modular design support for site Additionremoval and line length adjustment, low-volume mixed production, and low-cost line changes.
3. Accurate and stable chain drive
4. Reliable and low-cost maintenance, wear chains ensure long life and low failure rates; simple construction makes maintenance easy (regular lubrication and stop-loss checks) .
5. Wide compatibility: Integrated Assembly, testing, aging and packaging processes, compatible with intelligent system docking
Application scenarios
Electronics and Electrical: Consumer Electronics (mobile phones, laptops) , electronic component (relays, sensors) , office equipment (printers, projectors) .
Automotive industry: Automotive Parts (engine parts, seats) , new energy vehicle parts (rechargeable batteries, battery packs) , automotive electronics (in-car navigation, digital video recorders) .
Home appliances and smart home: white products (air conditioners, refrigerators) , small appliances (rice cookers, humidifiers) , intelligent equipment (intelligent door locks, sweeping robots) .
Educational devices (tablets, educational robots) , hardware tools and smart toys.
